ECOM RSM-Ex 01 | Zone 1/21

ECOM RSM-Ex 01 | Zone 1/21

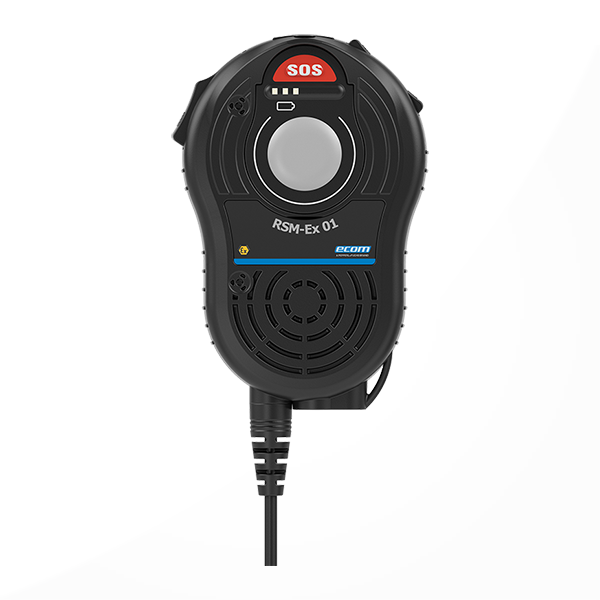

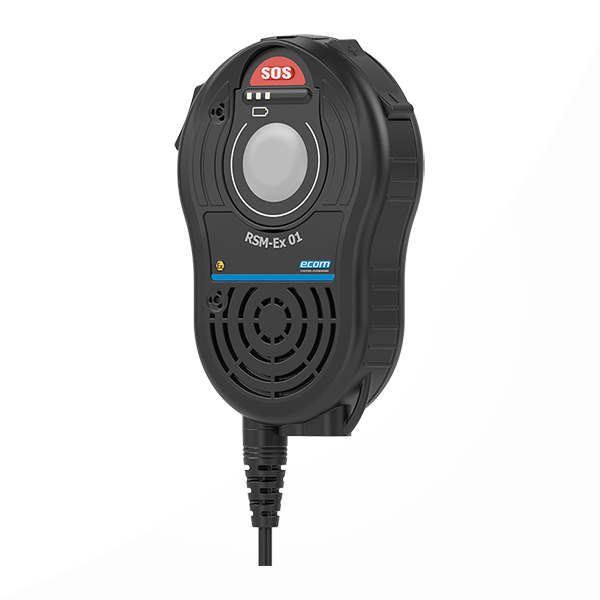

RSM-Ex 01 – Intrinsically Safe Remote Speaker Microphone for Zone 1/21

  • Wired connection or wireless (Bluetooth™ version planned)
  • Overlapping volume and sound performance – Up to 103 dB
  • Extremely long operating times with high voice volume – Up to 78 hours
  • Good operability even with gloves



Data Sheet



Enquiry
SKU: 1001-3 Category:
Description

The RSM-Ex 01 comes with an IP65/67 rating and an included noise reduction functionality. It is able to produce clear and high volume audio (up to 103 dB). Even with gloves on, operating the RSM is intuitive and easy.



The new own designed, industrialized 3.5 mm plug provides robust design, a safety screw for fixing the plug with a Smartphone and a future design for most upcoming ecom devices.



Additional headsets can be connected using the regular 3.5 mm plug.



  • Lone Worker Ready (optional SOS button)
  • Additional multi-functional buttons and a dedicated SOS button
  • 2200 mAh Li-ion battery pack for a long operating time
  • Linguistic feedback when changing individual modes
  • Magnetic charging cable & optional charging cradle
  • IoT Ready: “Custom Service Load” allows individual button settings for sending custom commands to servers and other IoT switches – e.g. to open a gate (only for Ex-Handy 10 Series)



Loudspeaker performance Up to 103 dB
Power supply Li-Ion 2200 mAh
Charging
  • Charging cable and docking station with magnetic charging plug: similar concept to Smart-Ex® 01 or Ident-Ex® 01. A docking station without any electronics and a mounting option for the charging plug.
  • Optical charging level indication (multiple LEDs)
Plug
  • 3.5 mm 4-pin headset jack with locking mechanism for Smart-Ex® 01 /201 and Ex-Handy 09 / 209 versions
  • 3.5 mm 4-pin headset jack with locking mechanism for ecom Next Generation Phones
  • 3.5 mm 4-pin headset jack for Standard Android and Windows devices
Buttons
  • PTT button operable with thick gloves
  • Front facing multi-function button
  • Volume up / down
  • SOS button (optional)
Features
  • Lone Worker Ready (optional SOS button)
  • IOT Ready (4 Standard Google intents usable and/or optional 4 additional Android Intents)
  • Build in NFC Technologie
Run times**
Use Time in %with typical user profiles
Speak / Hear / Standby		 High noisy areas with sound level above 100 dB Loud noisy areas with sound level between 84 and 100 dB Noisy areas with sound level up to 84 dB
5 / 5 / 90 -> 47 h -> 60 h -> 78 h
25 / 25 / 50 -> 16 h -> 27 h -> 45 h
50 / 50 / 0 -> 9 h -> 16 h -> 30 h
Full sound level (8/8)* Very high sound level (4/8)* High sound level (2/8)*
*There are 8 different volume levels possible.
**determined runtimes on the Smart-Ex® 01 based on RSM-Ex 01 software version V 16
Stand-by time Approx. 80 hours after commissioning via the 3.5mm jack of an Android or Windows device
Temperature range Ta = -20 … +55°C


IP rating

IP 64 following EN/IEC 60079-0 (ATEX/ IECEx).
IP 65 / 67 following EN/IEC 60529 (industrial standard).
Accessories

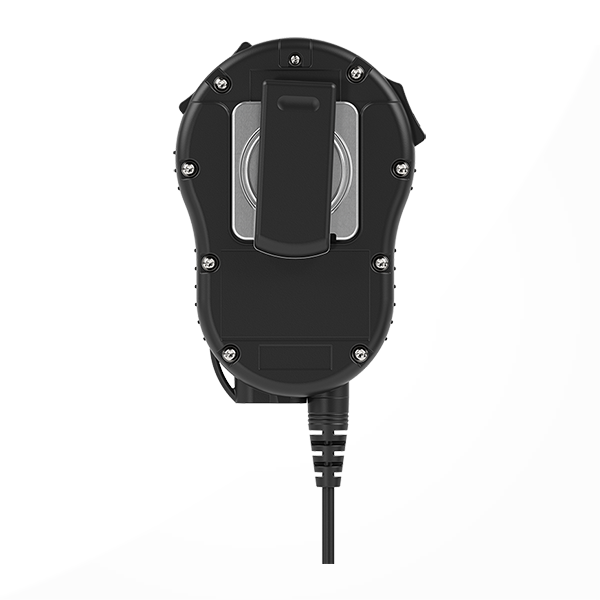

  • Removable belt clip
  • Charging cable
  • Docking station (optional)
  • Connection of additional headsets (optional)
