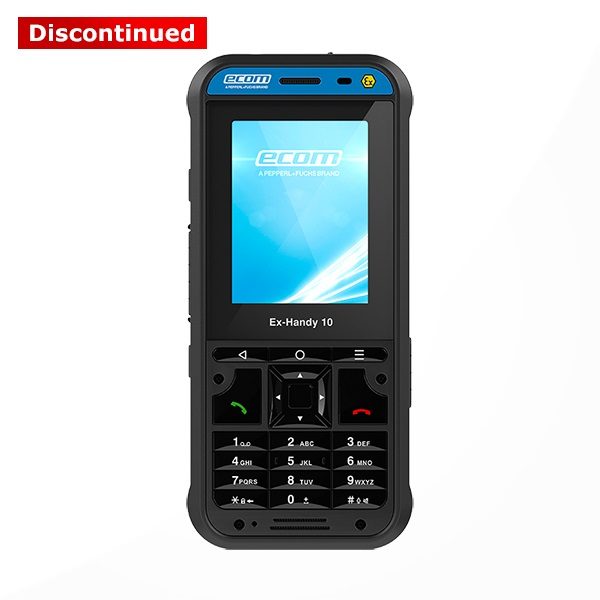

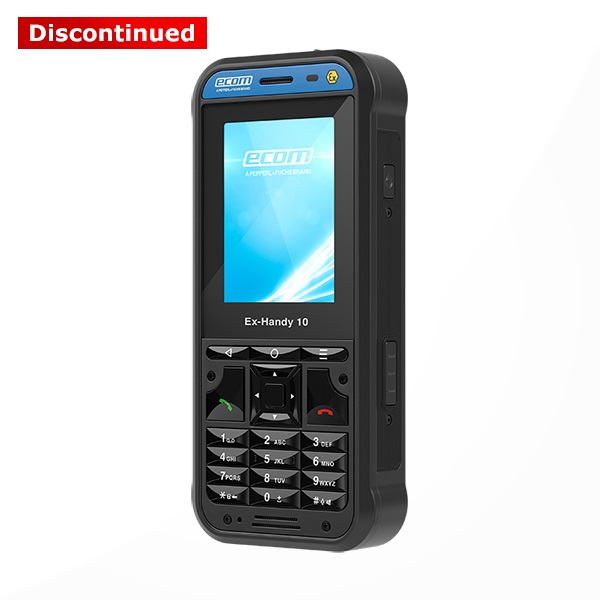

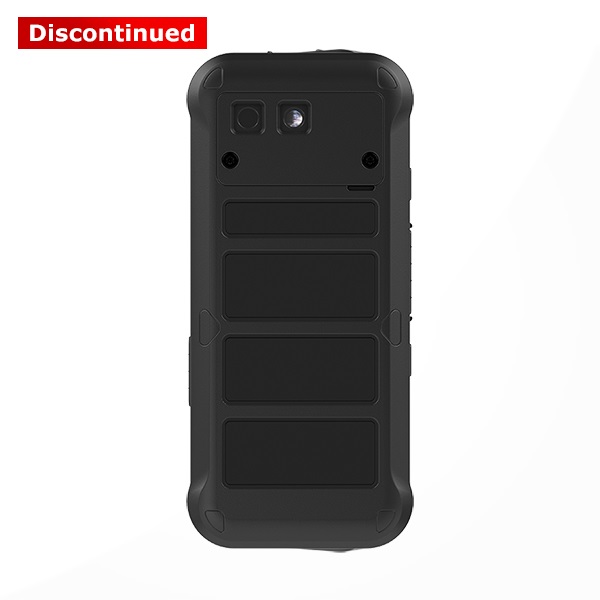

ECOM Ex-Handy 10 | Zone 1 and DIV 1

ECOM Ex-Handy 10 | Zone 1 and DIV 1

New Intrinsically Safe 4G/LTE Ex-Handy 10 DZ1 for Zone 1 & DIV 1

For users who need a more advanced mobile phone, the Ex-Handy 10 Feature Phone is designed to meet this need.



The Ex-Handy 10 enables the use of a touch screen as well as a regular numeric keypad.



Data Sheet



Enquiry
SKU: 1010 Category:
Description

Discover Your Options



The Pepperl+Fuchs brand ecom introduces Ex-Handy 10 – the new generation of intrinsically safe 4G/LTE feature phones for a broad variety of applications – from pure communication to Push-to-Talk or lone worker protection.



The Ex-Handy 10 with Android 8.1 operating system, is the ideal companion for innovative Industry 4.0 applications in hazardous areas. With IP68 and Gorilla® Glass you can operate the Ex-Handy 10 in the roughest of environments. With a 5-year product lifecycle and global Ex-certifications to meet all requirements, it provides a low risk investment to the user.



With customer-specific configurations and customizations, it also handles the most demanding of situations.



  • IP68 – dust- and waterproof housing + MIL-STD-810G standard
  • Worldwide approvals for Zone 1/21, 2/22 & Class 1 / Div 1 & Div 2
  • Protected in all situations: Special buttons for Push-To-Talk (PTT) & Lone Worker Protection (LWP)
  • Always and everywhere applicable: Excellent readability of the display even in direct sunlight and a long battery life.



Operating System Android™ 8.1
Processor Qualcomm Snapdragon MSM8909 platform
Memory
  • 2 GB RAM, 16 GB ROM
  • SD card up to 128 GB
Display
  • 2.6″ capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla glass
  • Support of glove and wet mode
  • High Visibility in direct sunlight
Ports
  • 3.5 mm jack connection with special ecom mounting solution
  • 7-pins water-proof magnetic USB 2.0 connector
Dimensions 148 x 67 x 24 mm
Weight approx. 330 g
Operating temperature -20 … +60 °C
Connectivity
  • 4G / LTE -standard (SIM unlocked and free); Nano SIM
  • WiFi 802.11 a/b/g/n/ac/e/k/r/h; 2.4 Ghz and 5 Ghz support
  • Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy)
  • GPS / A-GPS / Glonass / Beidou / Galileo
  • NFC
Camera 8 MP rear camera with auto focus and LED flash with torchlight function (optional)
Battery 3920 mAh
Protection IP68 – Dust proof, water proof, MIL-STD-810G
