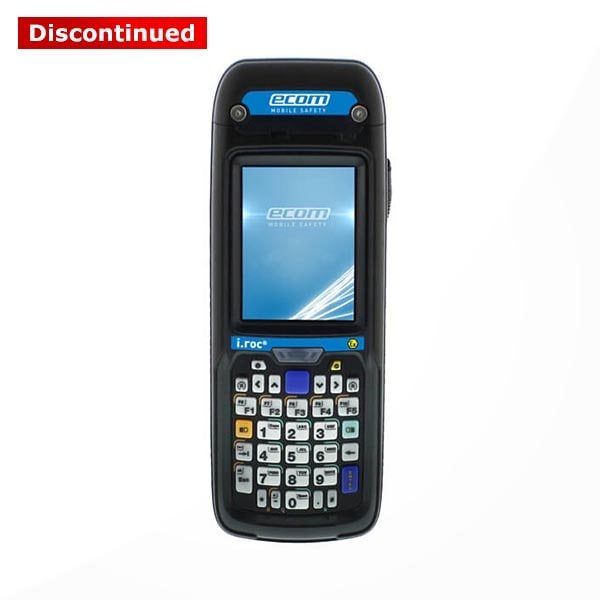

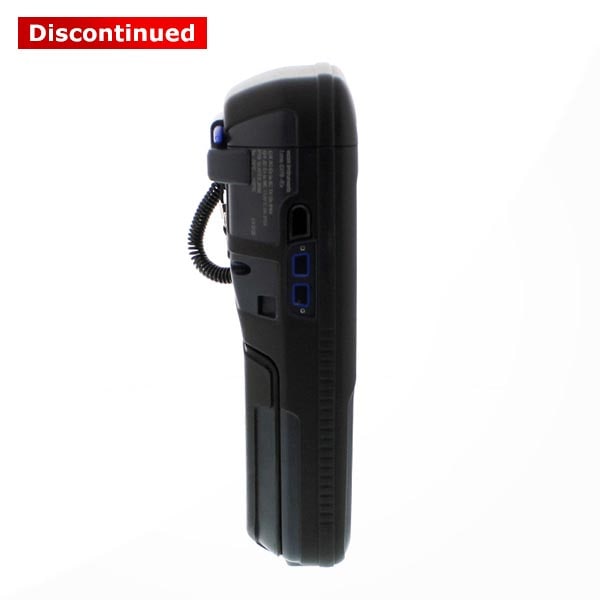

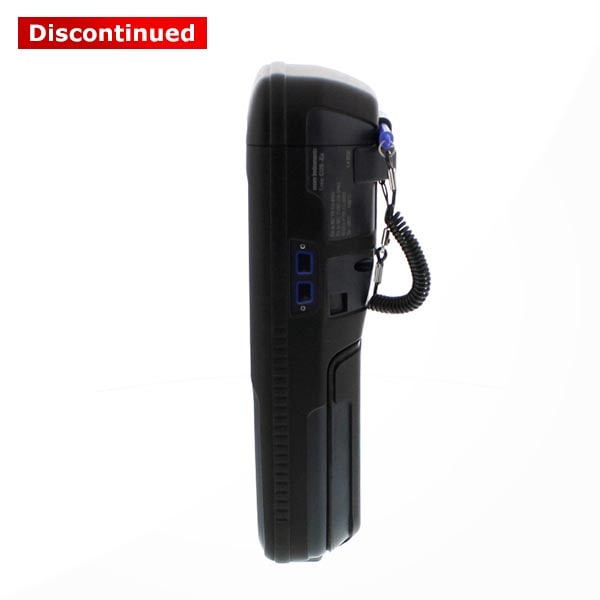

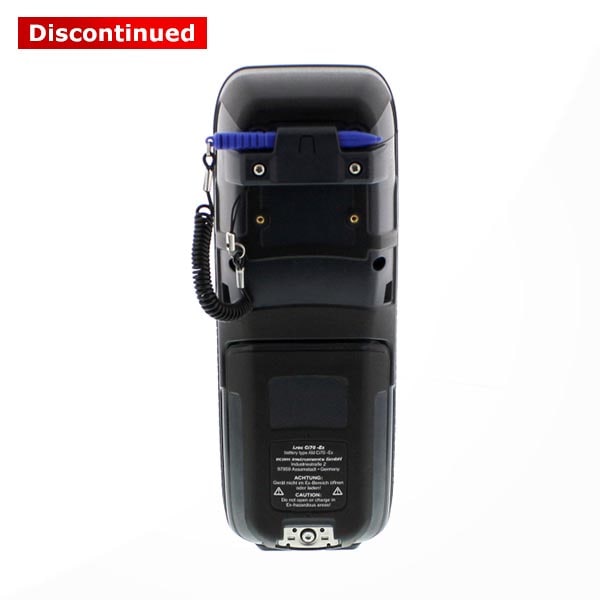

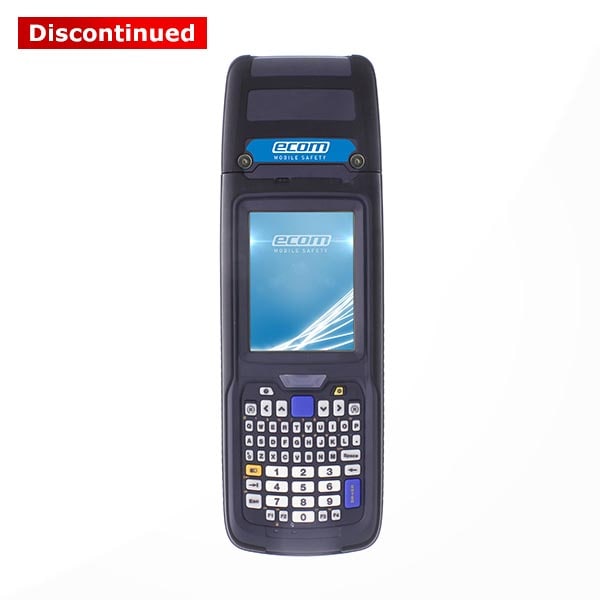

ECOM i.roc® Ci70 –Ex

ECOM i.roc® Ci70 –Ex

The i.roc® Ci70 -Ex offers unique industry-firsts among Intrinsically Safe Mobile Computers.



The innovative modular concept of the i.roc® Ci70 -Ex provides multiple configuration options with state of the art technology for virtually every application in hazardous environments.



In addition to ecom‘s unparalleled worldwide service support, customers benefit from the global certifications of this superior product solution.



  • state-of-the-art technology with a flexible, modular head system
  • The world‘s only PDA with global explosion protection & mining approval
  • The world’s first Zone 1 and Class 1, Division 1 certified PDA with wide-area network (WWAN 3G UMTS or CDMA)
  • long service life due to ruggedness and wear-resistance
  • for the Oil- & Gas-, chemical and pharmaceutical industry as well as other sectors
  • freely configurable and adaptable to your requirements
  • a wide range of accessories



Enquiry
SKU: 1004 Category:
Description

The i.roc® Ci70 -Ex is the latest development in ecom‘s successful i.roc® product range and the first PDA to have been jointly developed in conjunction with Intermec. This makes it a great mobile computer – not least because of its many features that are unique to mobile computing in explosive environments.



It also comes with the highest number of global approvals for use in such areas – from ATEX through IECEx to NEC & Mining (MSHA) – and it is also entirely compatible with all applications developed for the Intermec 70 series, which means that it can be incorporated into existing systems.



Mobile computers for use in explosive environments often constitute a compromise due to the fact that they cannot employ the latest technologies. But ecom and Intermec have combined their development competence to create an intrinsically-safe handheld computer solution that delivers state-of-the-art for use in explosive environments.



Download Datasheet



  • The unique modular concept of the i.roc® Ci70 -Ex combines state-of-the-art technology with a flexible, modular head system for all kinds of data acquisition systems: (LF, HF and UHF RFID with 1D Barcode Laser Scanner and 2D Multi-Range Barcode Imager)
  • The world’s only PDA with global explosion protection approval for ATEX / IECEx Zone 1 and NEC Class I, Division 1, combined in a single device
  • The world’s first Zone 1 and Class 1, Division 1 certified PDA with wide-area network (WWAN 3G UMTS or CDMA)
  • The world’s first Zone 1 and Class 1, Division 1 certified handheld computer with complete WLAN standard (IEEE 802.11 a/b/g/n)
  • A large selection of peripherals and accessories make the i.roc® Ci70 -Ex a comprehensive solution.
PHYSICAL CHARACTERISTICS incl. battery weight approx. 900 grams (2 pounds)

225 x 85 x 58 mm (8.8 x 3.3 x 2.3 inches) (standard configuration)

249 x 85 x 58 mm (9.8 x 3.3 x 2.3 inches) (with optional head modul)
ENVIRONMENTAL Operating Temperature -20 °C … +50 °C (-4 °F … +120 °F)

Storage Temperature -20 °C … +60 °C (-4 °F … +140 °F)

Drop Specifications 1.20 m (4 feet) according to MIL-STD-810G at -20 °C and +50 °C (-4 °F and +120 °F)

Electrostatic Discharge +/- 8 KV contact discharge and +/- 15KV air discharge

Rain and Dust Resistance IP65
POWER Battery 3.7 V, 4.000 mAh ∙ IEEE 1725 compliant ∙ Li-Ion ∙ swappable
OPERATING SYSTEM Windows® Embedded Handheld 6.5.3
PROCESSOR OMAP Multi Core Processor 1GHz
MEMORY AND STORAGE 512 MB RAM, 1 GB Flash Memory, Customer-accessible micro-SD slot for removable memory cards up to 32 GB
DISPLAY 3.5 inches, VGA (480 x 640 pixels), 65.536 colors, ambient light sensor, LED backlight, transmissive TFT-LCD touchscreen display, highly durable due to Gorilla® Glass
INTERFACES USB – Full Speed 2.0 Client ∙ IrDA
WLAN IEEE 802.11 a/b/g/n ∙ IEEE 502.11d ∙ Security: WPA2, WEP, TKIP, AES;

Authentication OPEN, SHARED-KEY, PEAP (MS-CHAP V2, Generic Token Card (GTC), MD5), TLS, TTLS (PAP, CHAP, MS-CHAP, MS-CHAP V2, PAP/Token Card, EAP with GTC), LEAP, FAST ∙ Cisco CCXv4 compliant
WIRELESS WAN 3G WWAN for data communications: UMTS/HSDPA/HSUPA (14.4 Mbps D/L, 5.76 Mbps U/L peak); Frequencies: 850, 900, 1800, 1900 MHz

CDMA/EV-DO Rev A (3.1 Mbps D/L, 1.8 Mbps U/L peak); Frequencies: 800, 850, 1900, 2100 MHz

GSM, GPRS, EDGE; Frequencies: 850, 900, 1800, 1900 MHz
BLUETOOTH® Class II, Version 2.1 + EDR ∙ Operating Channels: 0 – 78 (2402 – 2480 MHz) ∙ Data Rates 1, 2, 3 Mbps
GPS gpsOne
AUDIO Loudspeaker ∙ wireless Bluetooth® headset support ∙ VOIP audio support via headset
SENSOR TECHNOLOGY Accelerometer: Enables automatic or application-specific features
HEAD OPTIONS 2D imager, 1D laser scanner, HF RFID, LF RFID, UHF RFID
KEYBOARD Backlit numeric or alpha numeric ∙ laser etched hard keycaps
REGULATORY APPROVALS AND CONFORMITY Safety: 60950-1

EMC: FCC, CE

Laser: IEC/EN 60825-1 Class 2

Environmental: WEEE, RoHS

Radio: FCC, CE

Battery: UL 1642, IATA
ATEX EX II G ia IIC T4 Gb IP64

EX II D ia IIIC T135°C Db IP6X
IECEX EX II G ia IIC T4 Gb IP64

EX II D ia IIIC T135°C Db IP6X
NEC NORTH AMERICA (USA / CANADA) Class I Division 1, Groups A, B, C, D T4

Class II Division 1, Groups E, F, G T4

Class III
CLASS I ZONE 1 IIC T4 – PROTECTION METHOD: North America (USA): AEX ia IIC T4 Gb

North America (Canada): Ex ia IIC T4 Gb
CLASS II ZONE 21 IIIC T135°C – PROTECTION METHOD (USA): AEx ia IIIC T135°C Db
